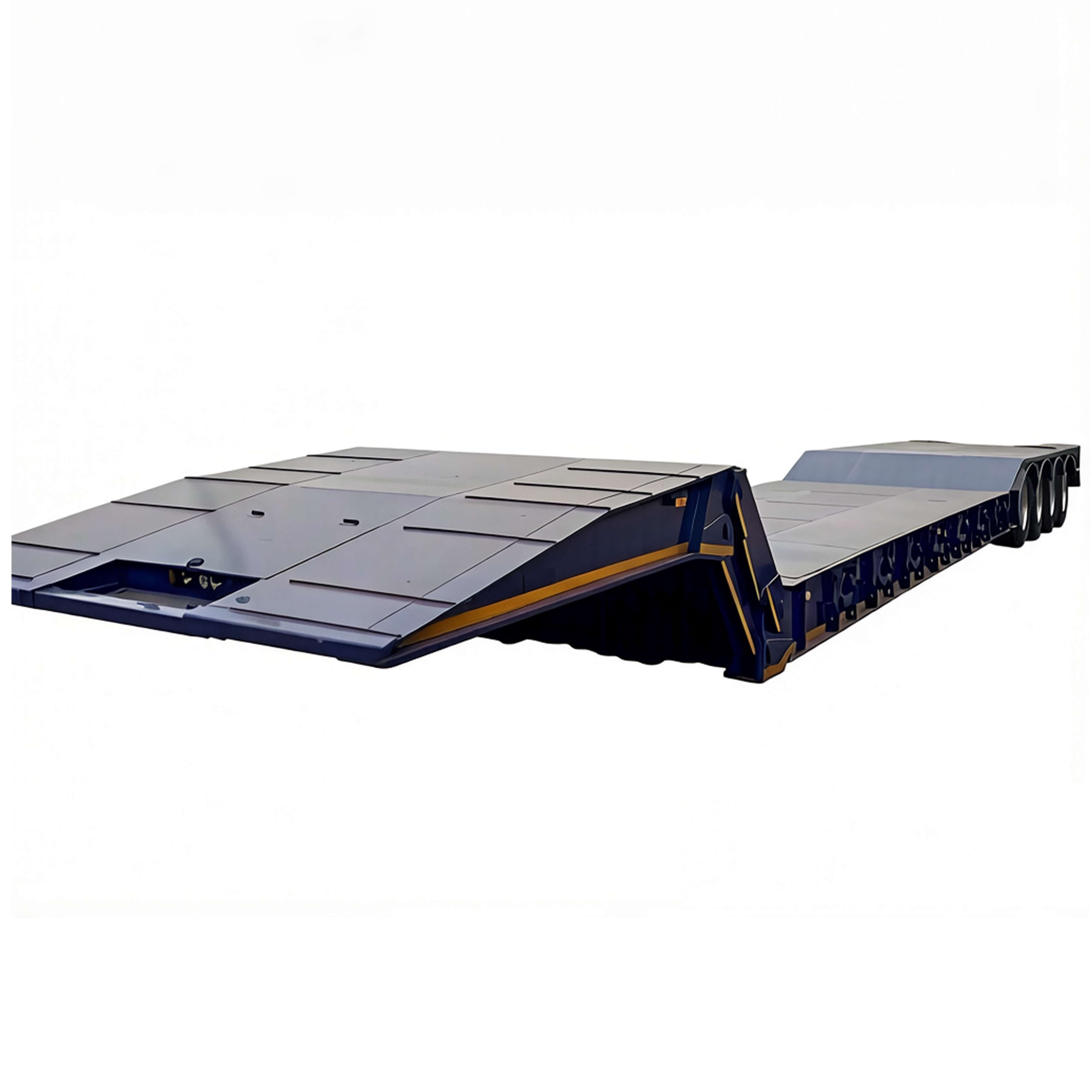

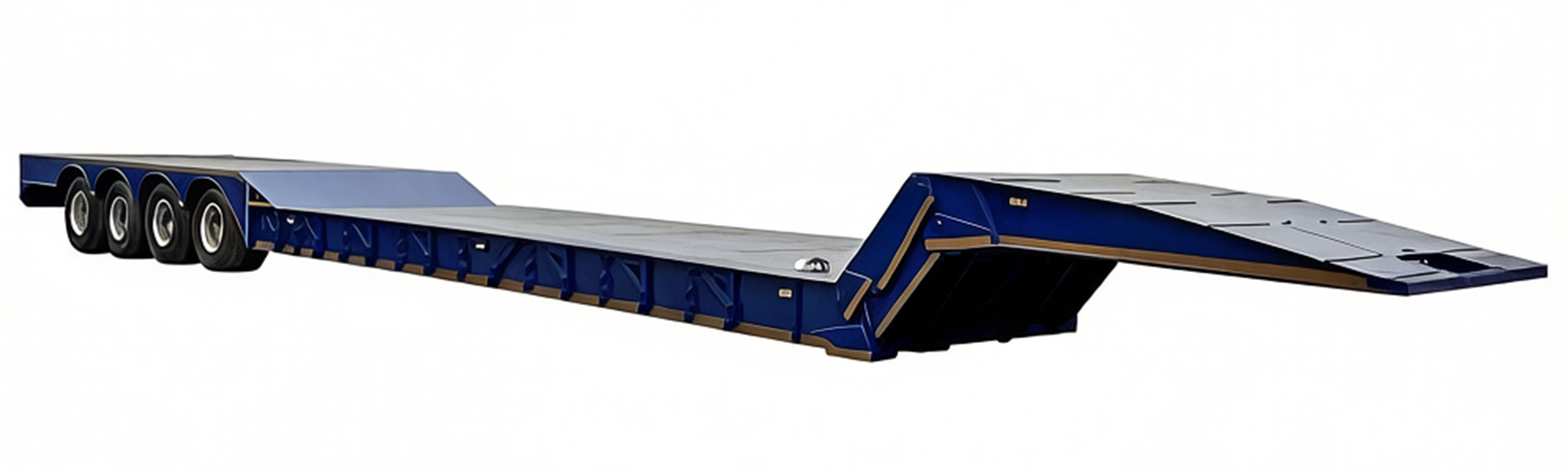

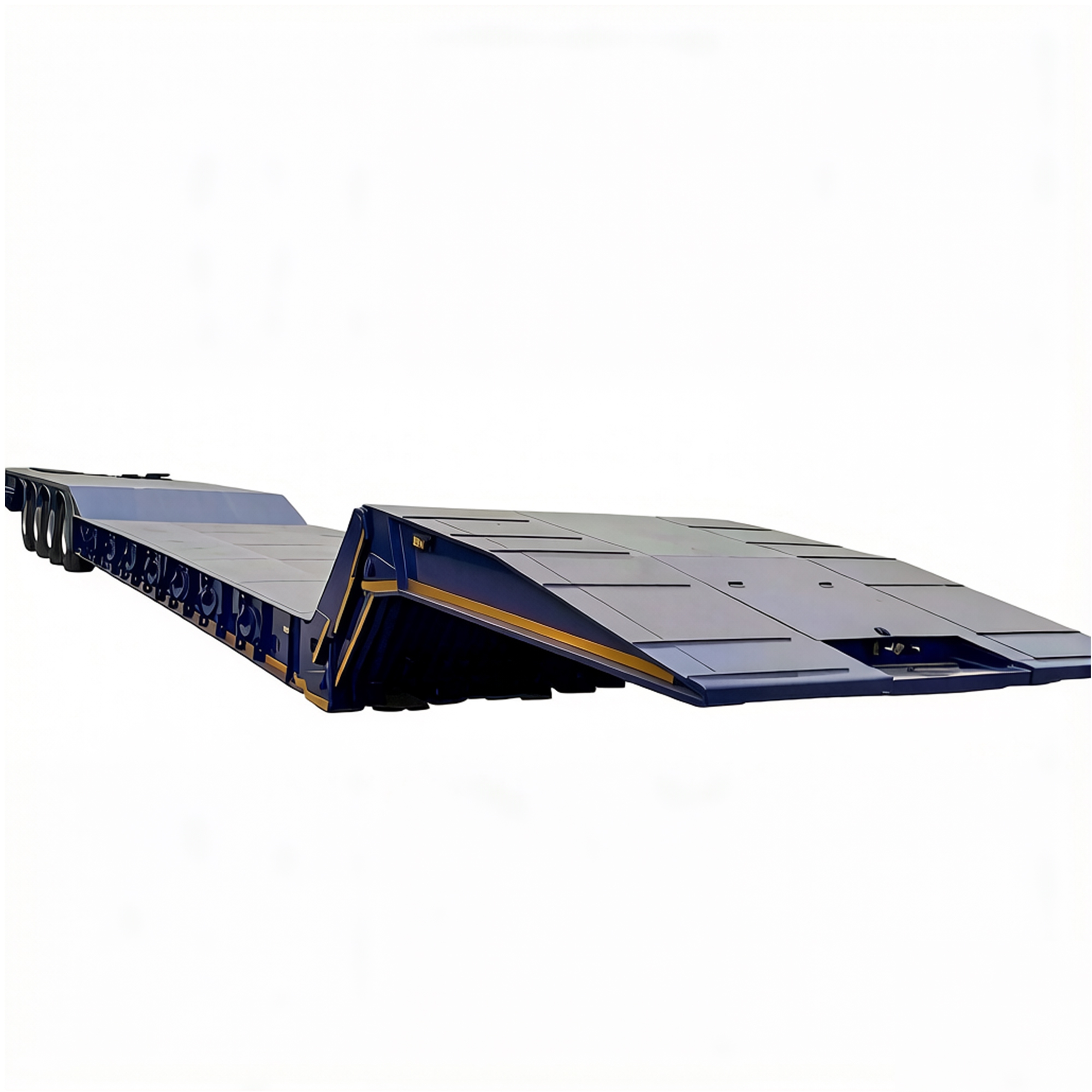

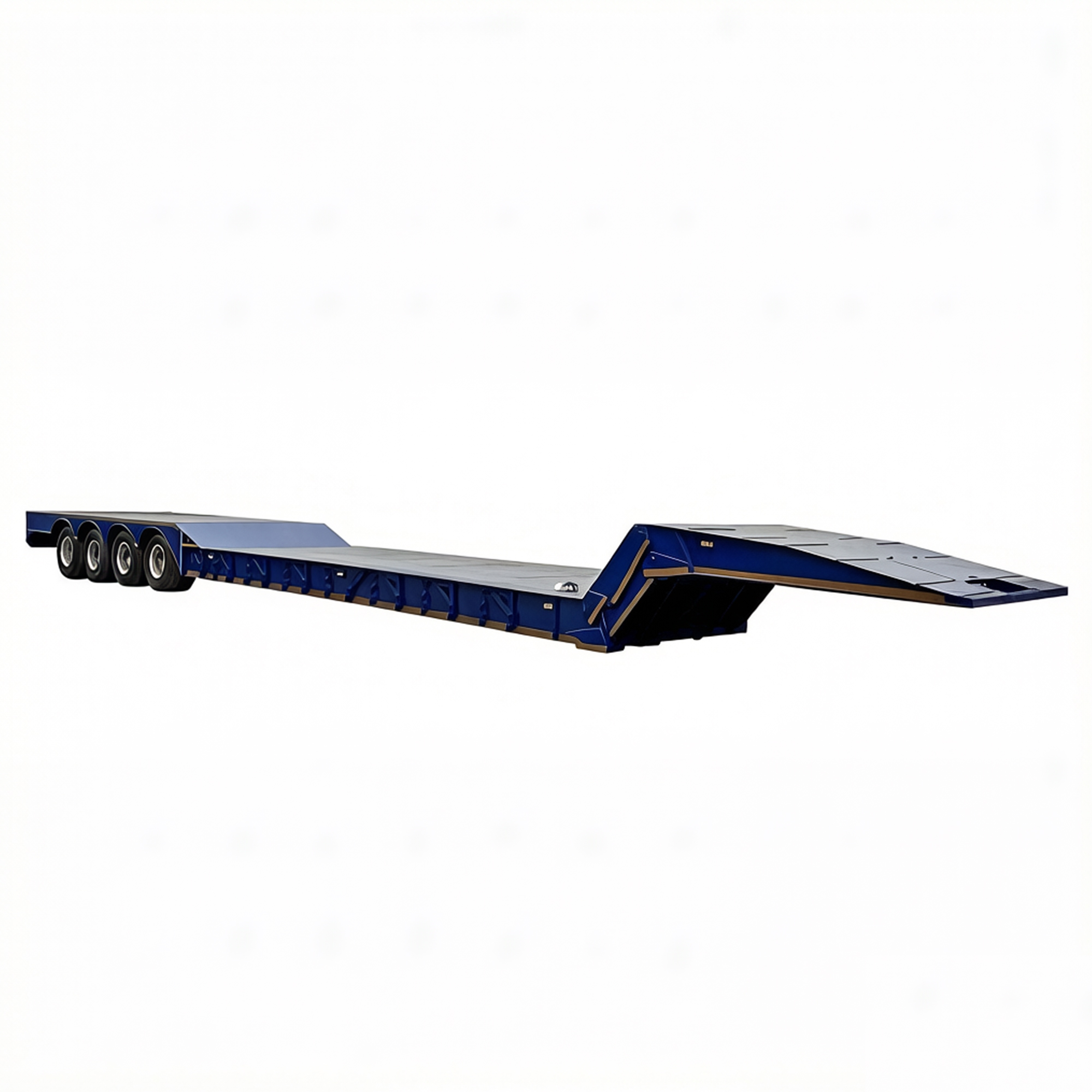

Foldable Gooseneck Lowbed Semi Trailer is specifically designed for moving oversized, overweight, and non-containerized cargo, this trailer type is indispensable in industries such as construction, mining, energy, and infrastructure development. Its defining characteristic—a hydraulically or mechanically folding gooseneck—sets it apart from standard lowbed trailers.
Loading Capacity | 80-120 tons |
Axle | 3/4/5/6 pcs Fuwa/BPW/Saf |
Tire | 12/16/20/24 units |
Material | Carbon steel |
Noted | Folding / Foldable Gooseneck Low Bed Semi Trailer's application scenarios span construction, mining, wind energy, heavy industrial, port logistics, and infrastructure. Folding / Foldable Gooseneck Low Bed Semi Trailer's core features—hydraulic folding gooseneck, ultra-low deck, multi-axle air suspension, heavy-duty steel construction, and integrated ramps—make it the most capable and flexible solution for moving heavy, tall, and oversized machinery.. |
The "Gooseneck" is the forward section of the trailer that connects to the truck tractor. In a Foldable Gooseneck design, this section can be hydraulically raised, hinged, or detached to allow the front of the trailer deck to lower completely to the ground. This creates a ramp-free loading angle, enabling heavy equipment to drive or be rolled directly onto the trailer without the need for separate loading ramps.

Using one or more heavy-duty hydraulic cylinders, the Gooseneck lifts and pivots forward, allowing the front of the main deck to descend completely to ground level. This creates a "drive-on" ramp angle of typically 6 to 10 degrees. The hydraulic system is operated from ground level via a remote control or manual lever, offering precise, controlled motion without requiring auxiliary equipment.
Folding / Foldable Gooseneck Low Bed Semi Trailer is engineered with a drop-center deck. This ultra-low profile is achieved through a recessed main beam design and small-diameter, high-capacity tires (often 8.25R15 or 12R22.5). The low deck enables transportation of tall machinery—such as excavators, pavers, or drilling rigs—within legal height limits , eliminating the need for disassembly or special route permits.
As a backup or alternative to the folding gooseneck, many models include a hydraulic or mechanical at the rear with foldable ramps. This dual-access design allows equipment to load from either end, increasing flexibility on congested sites.
To distribute extreme payloads (often 50 to 200+ tons), the trailer features 3 to 8 axles arranged in standard or self-steering configurations. Air suspension is commonly fitted, offering three major benefits: automatic load equalization between axles, adjustable deck height for dock access, and improved ride quality for sensitive cargo. Self-steering axles reduce tire scrubbing and turning radius, essential for maneuvering in tight job sites or port facilities.
All axles are equipped with full air brakes featuring WABCO anti-lock braking system (ABS) valves and spring-loaded parking brakes. LED lighting, reflective markings, and reinforced rear underrun protection are standard for road legality.
Construction sites require moving massive, self-propelled machinery such as excavators (30–120 tons), bulldozers, wheel loaders, and motor graders. The challenge is these machines have low ground clearance and tracked undercarriages that cannot use standard ramps.
Folding / Foldable Gooseneck Low Bed Semi Trailer solves this directly. The hydraulic system lowers the front deck to ground level, creating a shallow 6–8 degree incline. Tracked excavators drive directly onto the trailer without auxiliary ramps or winches. The ultra-low deck keeps the total transport height under legal limits even for tall machines like telehandlers or pavers. Multi-axle suspension with self-steering axles distributes the extreme point loads from tracked vehicles, preventing road damage and ensuring stability during cornering.
Mining operations involve transporting oversized haul trucks, shovels, crushers, and conveyor sections. These loads often exceed 100 tons and have dimensions that violate standard road regulations.
Folding / Foldable Gooseneck Low Bed Semi Trailer is engineered for these extremes. The hydraulic gooseneck incorporates a multi-stage cylinder system capable of lifting the trailer neck under load, critical when loading damaged or non-operational mining equipment. Additionally, the deck is reinforced with box-section main beams to withstand concentrated loads from shovel teeth or crusher jaws. For underground mining, compact versions with reduced overall length maneuver through tunnels and low headings.
Wind energy logistics present unique challenges: Tower sections are heavy and tall; Blades are extremely long (50–80+ meters) and fragile; Nacelles combine high weight with high center of gravity.
The Hydraulic Gooseneck allows precise lowering of the front deck to match loading dock heights at manufacturing facilities. For tower sections, the low deck keeps the massive steel cylinders within height limits.
Electrical transformers, generators, and pressure vessels are both heavy and dimensionally sensitive, and require shock-free transport to prevent internal damage.
Air suspension provides adjustable ride height, allowing the trailer to kneel at loading docks, and more importantly, offers superior shock absorption – critical for transformer oil insulation integrity. The folding gooseneck enables ground-level loading even from temporary off-road pads.
We provide detailed operation manuals and telematics support and training on multi-axle load distribution, hydraulic gooseneck coupling procedures, and proper deck lowering protocols. Operators minimize loading errors, extend equipment service life, and maximizing equipment performance and safety.
Clients can select from various gooseneck types, including
1. Gooseneck Configuration
2. Deck Design
3. Axle and Suspension
4. Auxiliary Equipment
Remote-controlled hydraulic power packs (battery or PTO-driven)
Winch mounting plates and roller fairleads
Spare wheel carriers, toolboxes, and LED work lights
Customizations also include complete metallization for corrosion protection, telematics integration for fleet monitoring.
A 12-month warranty covers key components (axles, hydraulics, steel structure), with a lifetime maintenance advisory.
Manufacturers provide extensive warranties covering structural components, hydraulic systems, pendle-axle assemblies, and steering mechanisms.
