Loading Capacity | 30-80 tons |
Volume | 28-45cbm |
Axle | 2/3/4 pcs |
Tire | 8/12/16 units |
Material | Carbon steel Q345/T700 |
Doors Opening Type | Multi choices Customized |
Twist Lock Type | Optional Customized |

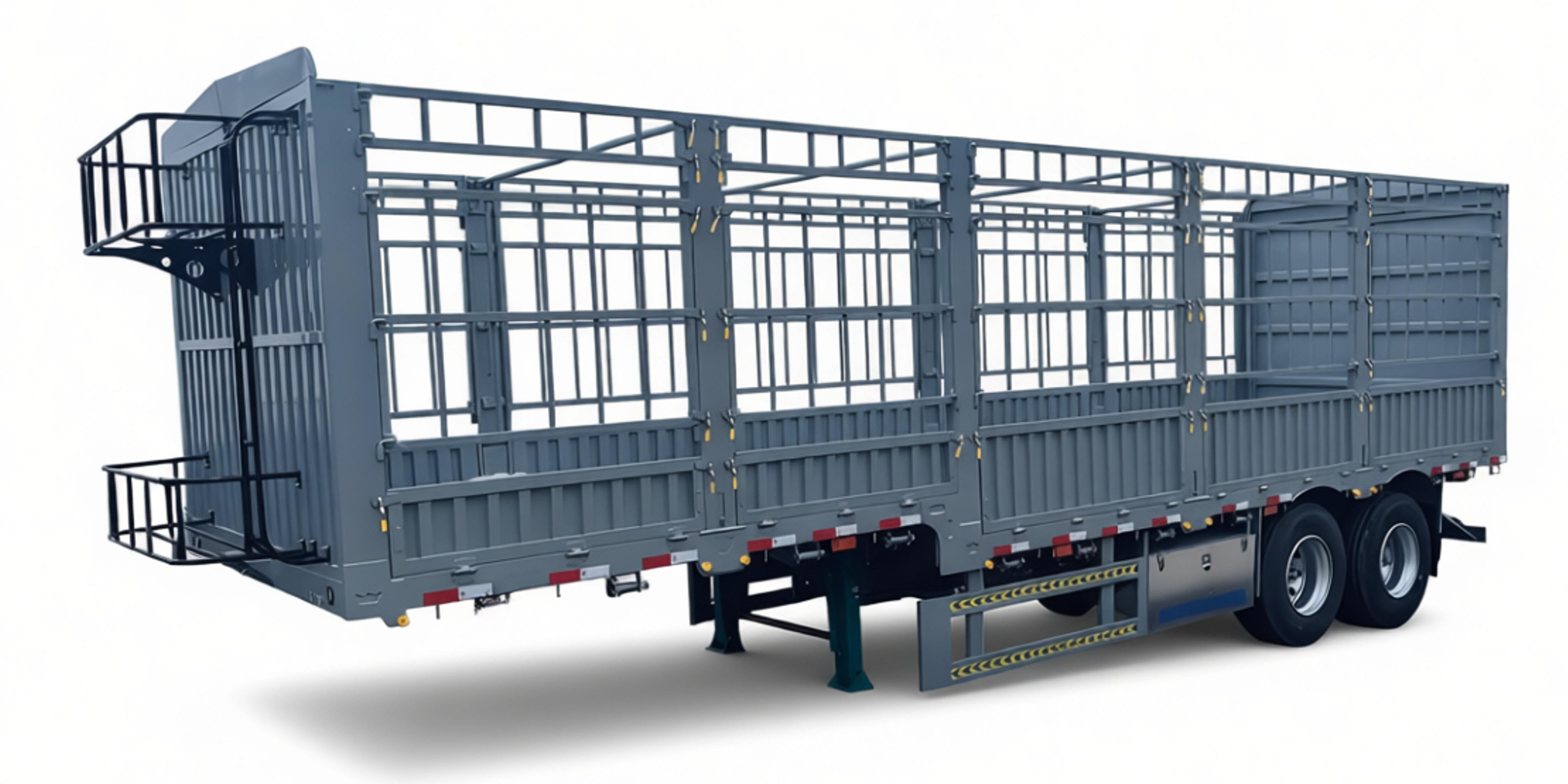

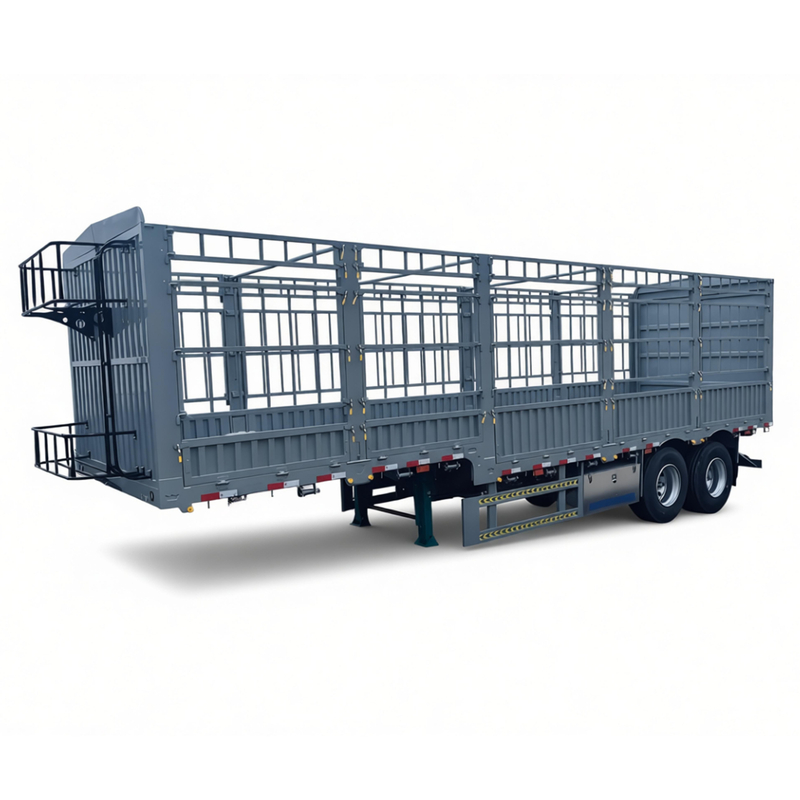

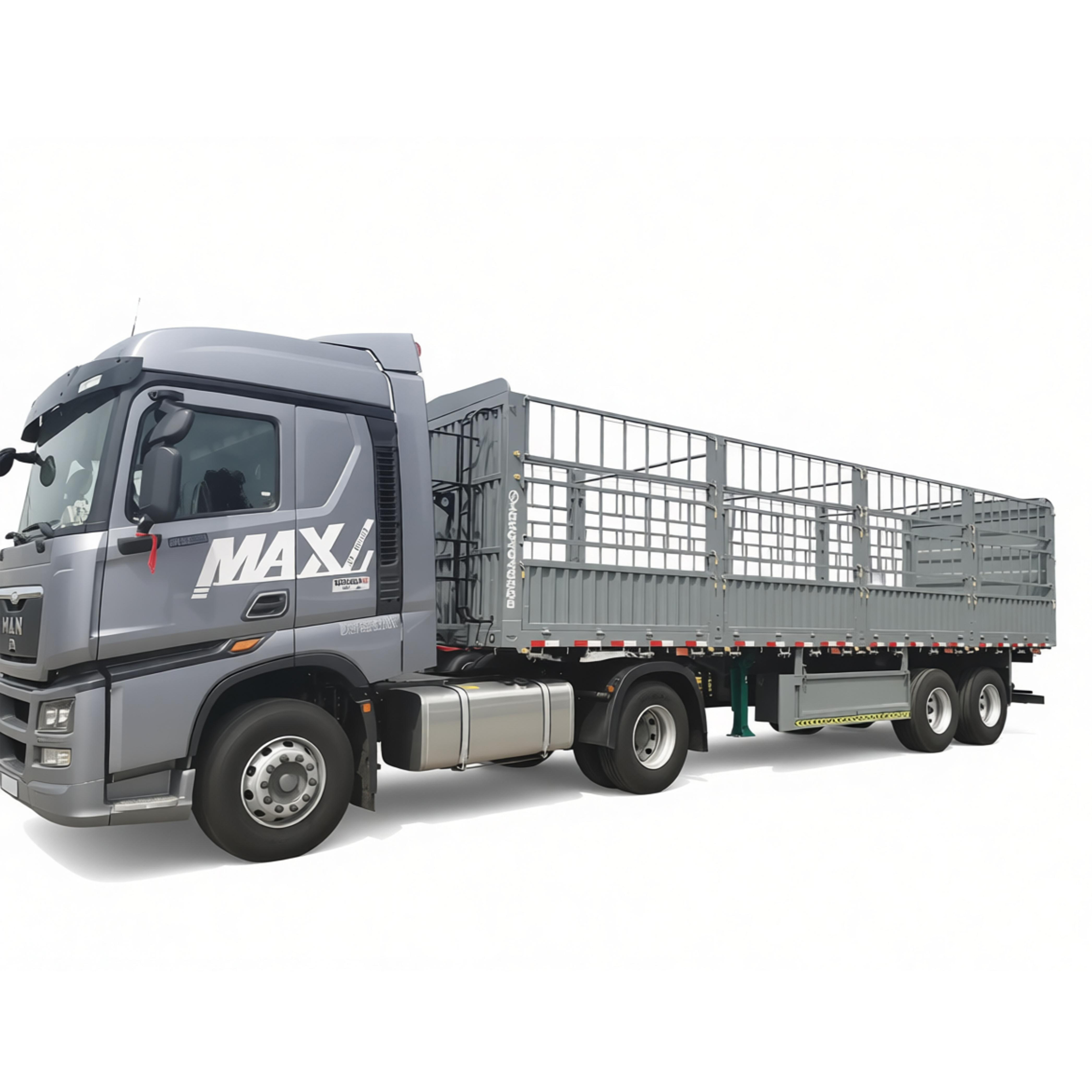

Fence Semi Trailer, also known as a curtain-side or open-top fence trailer. It features a robust perimeter of fixed or drop-down side rails and gates, often combined with a removable tarpaulin or mesh curtain. This unique design offers the flexibility of open-air transport with the security of contained sidewalls. An open fence structure (adjustable height) that promotes airflow, maintains cargo freshness, and allows quick inspections.
It also supports customization (e.g., door types, twist locks) to adapt needs.
Fence trailers are often paired with removable PVC roofs and side curtains. This creates a watertight seal to protect against rain and UV rays while still allowing air circulation. This design is critical for transporting fresh produce: it reduces condensation and heat buildup, extending shelf life compared to enclosed trailers. For livestock transport, the slats allow animals to breathe and reduce stress, lowering mortality rates during long trips.
Compared to specialized trailers (e.g., refrigerated vans for produce), the Fence Semi Trailer costs 30–40% less upfront. Compared to a full van, the open fence structure uses less material, resulting in a lower tare weight, while the Q345/T700 steel ensures it can handle 80 tons of cargo. The simple fence structure minimizes maintenance costs (no complex hydraulic or cooling systems).
• Doors & Access: Customizable door opening types (sliding, hinged, or foldable) allow easy loading of large items (e.g., hay bales, livestock crates). Rear doors can be fully opened to enable forklift access.
• Twist Locks: Optional twist locks (4–8 units) let the trailer secure small containers (e.g., 20FT) for mixed cargo transport (e.g., produce + packaged feeds).
• Fence Height: Customers can choose between fixed steel fences for heavy-duty security or lightweight drop-down gates for quick access. Heights typically range from 500mm to 2,000mm, allowing customization based on cargo type—lower for pallets, higher for loose bulk materials like scrap or hay.
• Accessories: Additional custom features include integrated stake pockets, extra lashing rings, internal load dividers, and rear ramps for vehicle loading.
For fruit/vegetable farms and distributors, the trailer’s ventilation prevents spoilage during transit from fields to markets.

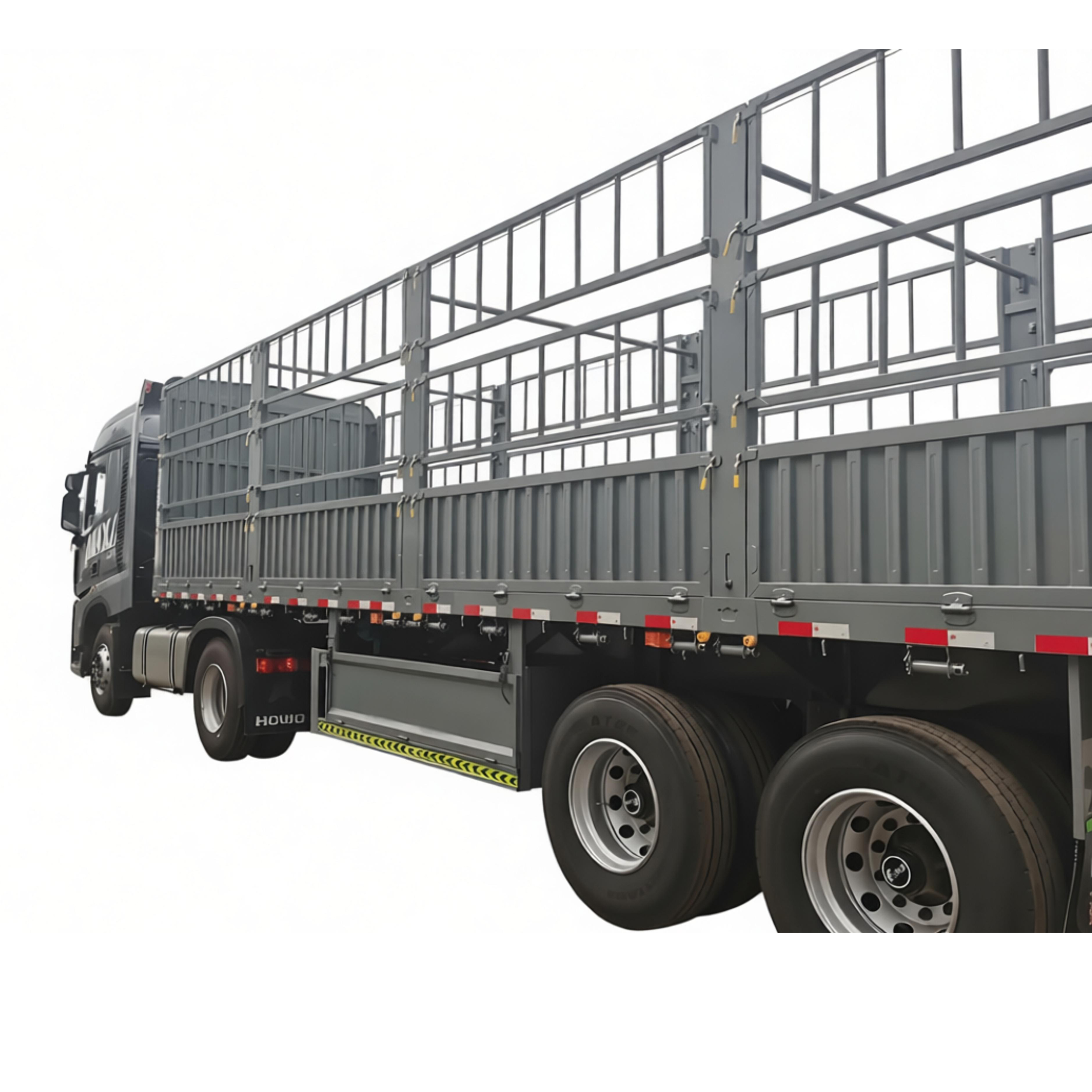

Farms and livestock traders use the trailer to transport cattle, sheep, or pigs. The fence slats provide visibility for drivers to monitor animals, while the open structure reduces ammonia buildup from waste. Customizable fence heights prevent animals from jumping.
Farmers rely on Fence Semi Trailers for moving bulk agricultural products such as hay bales, straw, silage bags, and bagged feed. The ventilated fence structure prevents moisture buildup and mold growth, which is critical for organic cargo.
For bulky but weather-sensitive items like household furniture, appliances, or mattresses, a Fence Semi Trailer with a full PVC curtain and roof offers a cost-effective alternative to a dry van. The side access allows delivery crews to unload specific items without moving others—an efficiency boost for multi-stop routes.
• Structural Dimensions: The trailer's length, width, and fence height can be fully customized. Our team advises on fence slat spacing (optimized for different cargo) and weight distribution to avoid overloading.
• Customization: Custom features include drop-down side gates, rear barn doors, internal load dividers (to separate multiple shipments), extra lashing rings, stake pockets, and integrated forklift ramps.
Axle configurations, suspension types and braking systems are all selectable based on regional regulations and typical road conditions.
• After-Sales: 24/7 support for fence repairs or part replacements (slats, hinges, locks), plus tips for maintaining steel components to prevent rust.
