Fence Semi Trailer is a widely used transport truck for carriers handling dense, bulky, or high-value cargo across long distances. It is the workhorse of heavy-duty distribution, built to handle the toughest jobs with reliability and safety.
Loading Capacity | 30-80 tons |
Volume | 28-45cbm |
Axle | 2/3/4 pcs |
Tire | 8/12/16 units |
Material | Carbon steel Q345/T700 |
Doors Opening Type | Multi choices Customized |
Twist Lock Type | Optional Customized |
Fence Semi Trailer, also known as a curtain-side or open-top fence trailer. It features a robust perimeter of fixed or drop-down side rails and gates, often combined with a removable tarpaulin or mesh curtain. The 5 Axles Fence Semi Trailer: The Heavy-Duty Solution for Bulk Logistics. As logistics demands grow—particularly in construction, agriculture, and mining—this configuration has become the industry standard for moving massive volumes of goods safely.
The fence prevents loose bulk goods, such as agricultural produce or scrap metal, from spilling during transit. However, unlike a closed box trailer, the fences can often be removed or folded down. This transforms the trailer into a flatbed within minutes, allowing for overhead loading of tall machinery via crane .
Ventilation: For livestock or perishable goods, the open fence design provides critical ventilation, a feature that enclosed containers cannot offer.

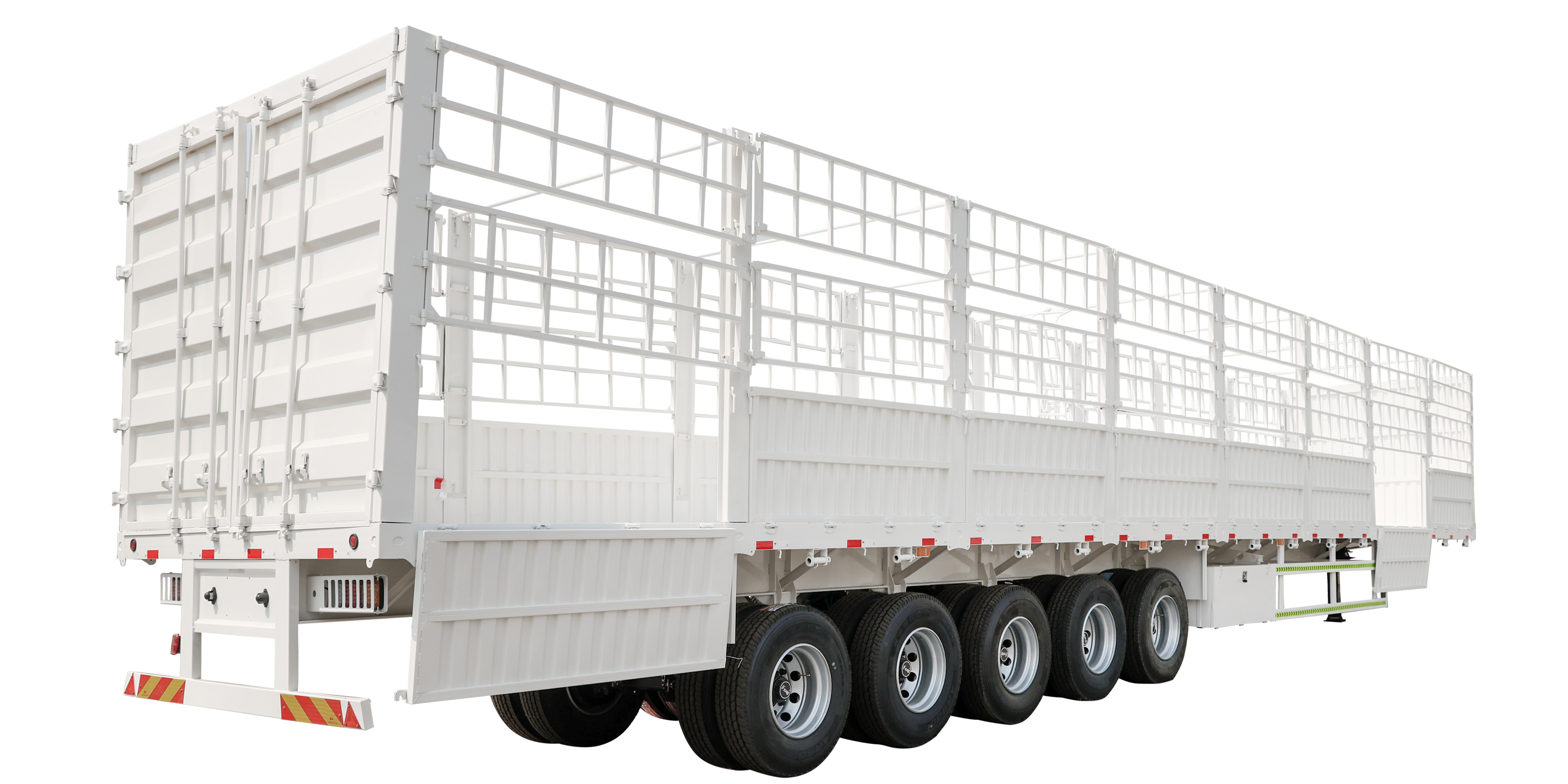

Unlike standard 2 or 3-axle variants, the 5-axle design significantly enhances weight distribution, allowing for a legal and safe payload capacity ranging from 80 to 100 tons . This capacity makes it indispensable for heavy industries. Whether transporting coils of steel, sacks of grain, or construction machinery, the chassis—typically constructed from high-tensile Q345B steel "I" beams—resists bending and deformation under extreme stress ..
Manufacturers equip these trailers with heavy-duty components to ensure longevity under maximum load. Standard specifications often include BPW or FUWA axles, mechanical leaf spring or air suspension, and WABCO braking systems.
• Doors & Access: Customizable door opening types (sliding, hinged, or foldable) allow easy loading of large items (e.g., hay bales, livestock crates). Rear doors can be fully opened to enable forklift access.
• Axle Configuration & Suspension: Operators can choose between spring suspension (cost-effective for rough terrain) or air-ride suspension (ideal for fragile cargo). Five axles mean ten or more tires sharing the load. This lowers rolling resistance and reduces tire strain, extending tire life by up to 30% and improving fuel economy under full load.
• Fence Dimensions & Materials: The "Fence" consists of durable steel side rails supported by removable posts (stakes). These posts lock securely into pockets welded along the chassis. Features include reinforced top rails for strapping and optional split gates for easy side access. Fence height is fully customizable, Drop-down gates or removable posts can be specified for full side access.
• Enhanced Braking Safety: Dual brake lines and spring-loaded parking brakes ensure reliable stopping power, even when fully loaded to 100 tons. The trailer is fitted with a WABCO or KNORR brake valve system, featuring anti-lock braking system (ABS) capability. Custom features include extra lashing rings, internal load dividers, stake pockets, rear barn doors, hydraulic liftgates.
The 5 Axles Fence Semi Trailer is widely used to transport bulk crops such as wheat, corn, soybeans, and rice. The solid side fences prevent grain from spilling during transit, while the open top allows for rapid loading from grain elevators or conveyor belts.
Additionally, the trailer is ideal for moving bulk fertilizers, animal feed, and even harvested timber from plantations. The Five-axles allow farmers and cooperatives to move large harvest volumes in fewer trips, significantly reducing logistics costs.
The 5 Axles Fence Semi Trailer is used to transport steel coils, pipes, plates, and wire rods. The flat floor, combined with removable side fences, allows forklifts or overhead cranes to load heavy steel products easily. The five axles prevent damage to road infrastructure. Additionally, the trailer can carry heavy industrial machinery, such as generators, transformers, and mining equipment, where the fences provide an anchoring point for chains and straps..
Construction sites generate a constant flow of heavy materials and debris. This trailer is perfectly suited for transporting sand, gravel, crushed stone, and concrete blocks. The removable fence feature is particularly valuable here: when carrying loose aggregates, the fences contain the load, but when hauling steel rebar, scaffolding, or precast concrete panels, the fences can be removed to allow for overhead crane loading..
In mining and quarrying, durability and weight capacity are non-negotiable. The 5 Axles Fence Semi Trailer is used to transport extracted ores, coal, limestone, and other minerals from remote sites to processing plants or railheads. The fence structure prevents material loss over rough terrain, and the robust floor handles the impact of rocks dropped from loading shovels, making it a cost-effective solution for mining logistics..
A less obvious but important application is livestock hauling. With appropriate modifications, the fence trailer is used to transport cattle, horses, and other large animals. The open fence design provides essential ventilation, reducing animal stress during long journeys. The high side rails prevent animals from jumping out, while the sturdy floor supports their weight.
At ports and rail terminals, the 5 Axles Fence Semi Trailer is used for intermodal transport of break-bulk cargo. It efficiently moves palletized goods, large bags, and oversized project cargo between docks and warehouses. The versatile fence system allows for rapid reconfiguration based on the cargo type, reducing turnaround time..
• Structural Dimensions & Fence Materials: The trailer's length, width, and fence height can be fully customized. Fence material options include galvanized steel (maximum durability and impact resistance) or aluminum alloy (lighter weight for increased payload). The steel is treated with anti-rust shot blasting and electrostatic powder coating to withstand harsh weather and corrosive materials.
• Customization: Custom features include extra lashing rings, internal load dividers, stake pockets, rear barn doors, hydraulic liftgates. Operators can add full PVC waterproof curtains, ventilated mesh curtains (for debris containment while allowing airflow), or roll-up tarps for quick manual access. Sliding roof systems convert the trailer between open-top and enclosed modes.
• After-Sales: 24/7 support for fence repairs or part replacements (slats, hinges, locks), plus tips for maintaining steel components to prevent rust.
