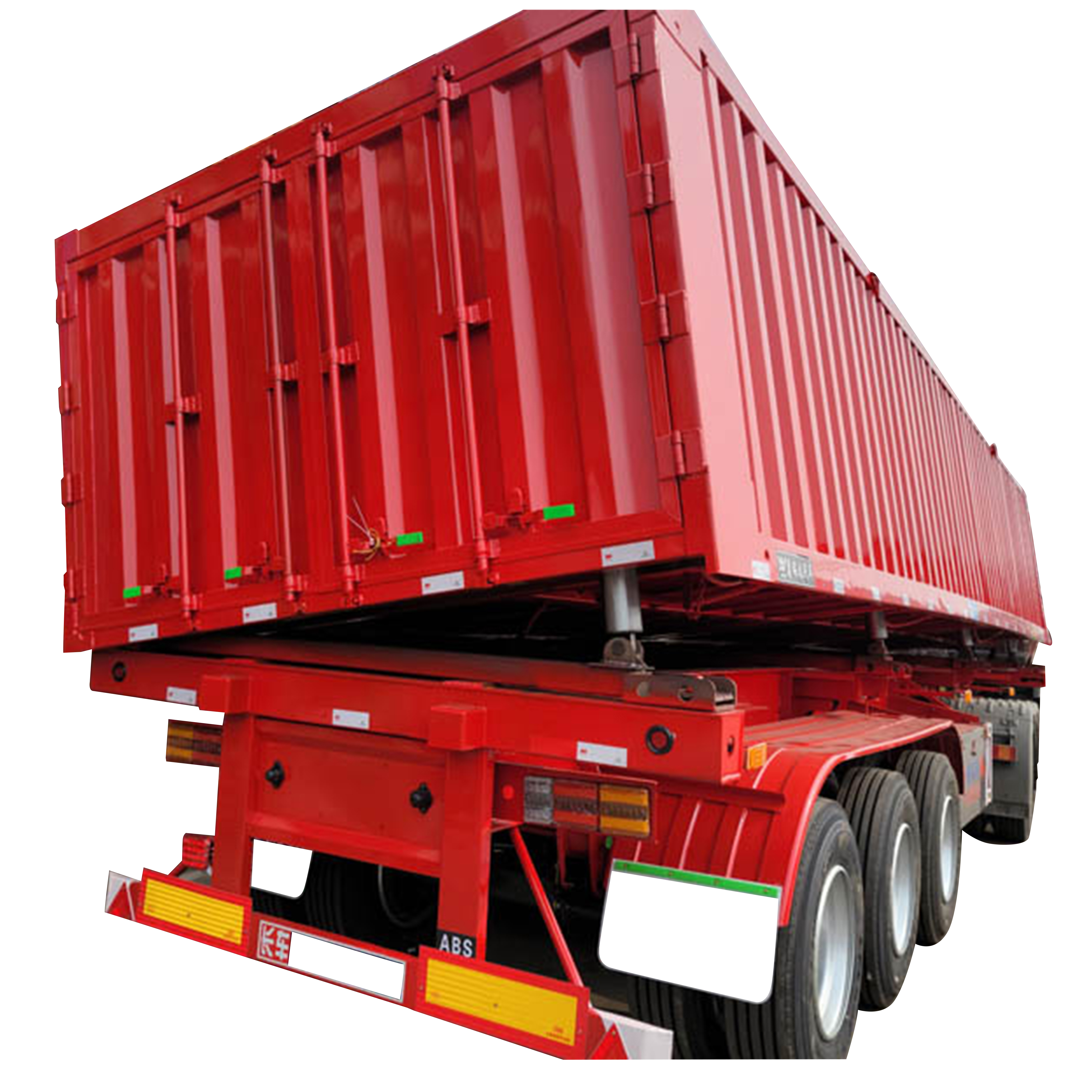

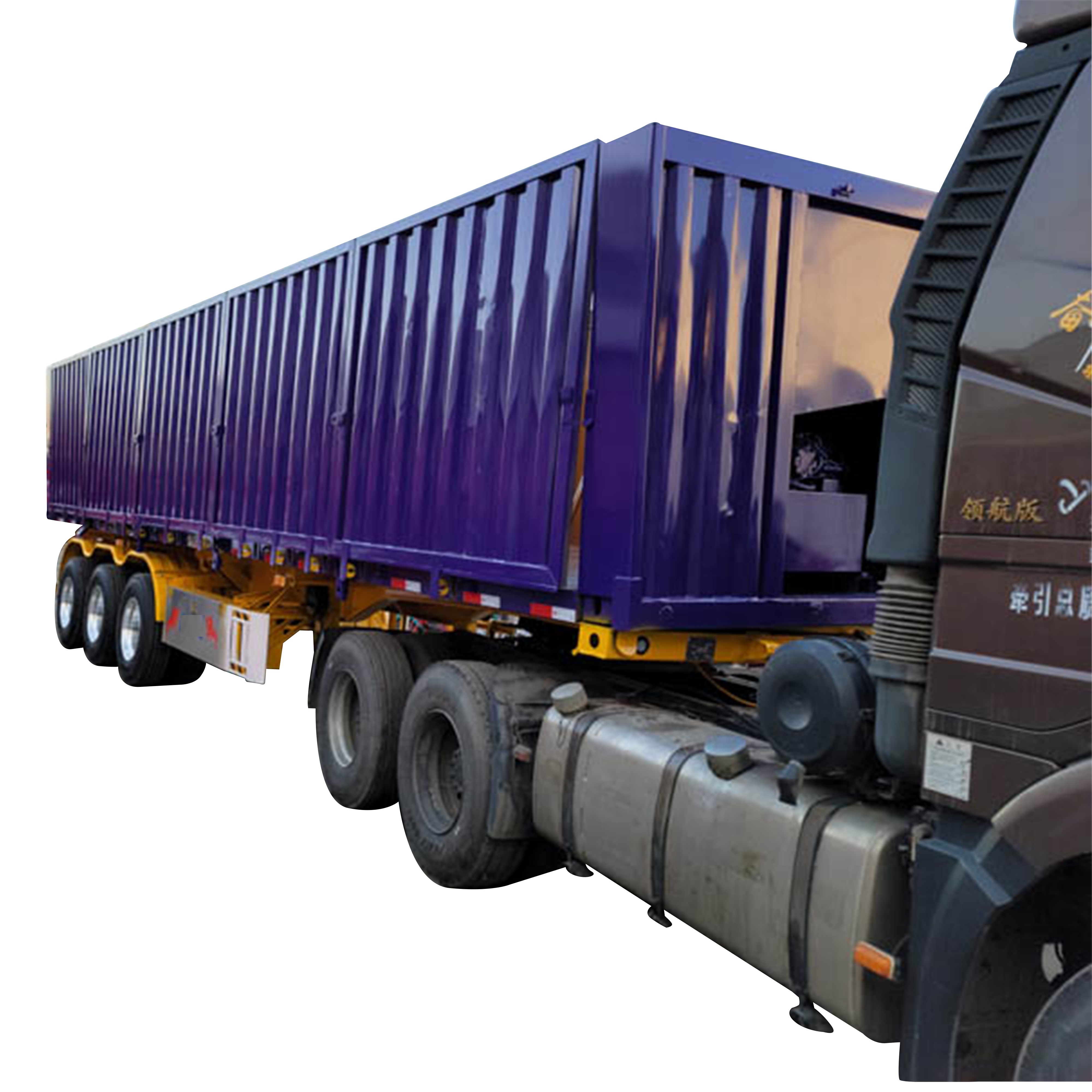

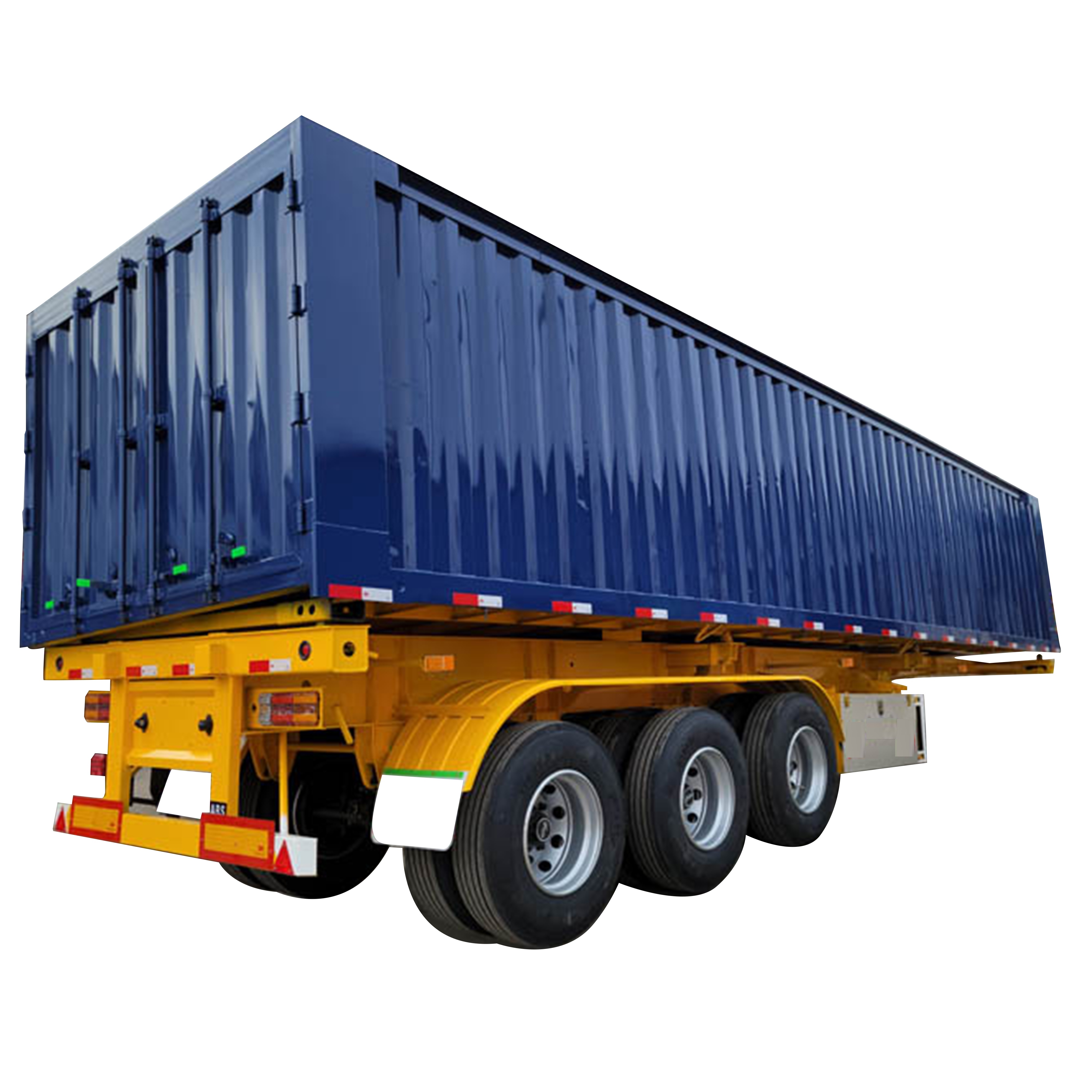

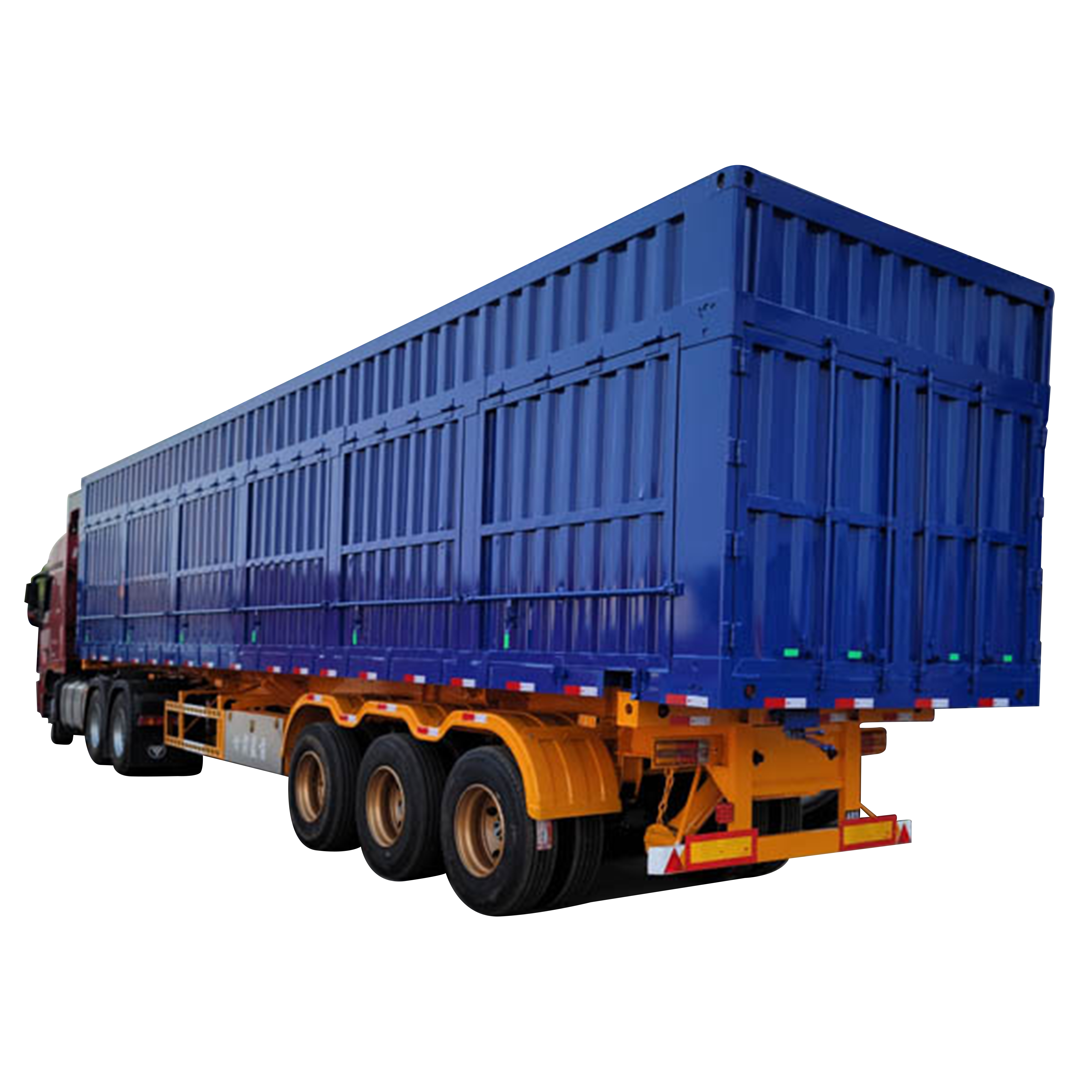

3 Axle Heavy Haul Dropside Skeleton Hydraulic Side Dump Semi Trailer

Product Introduction

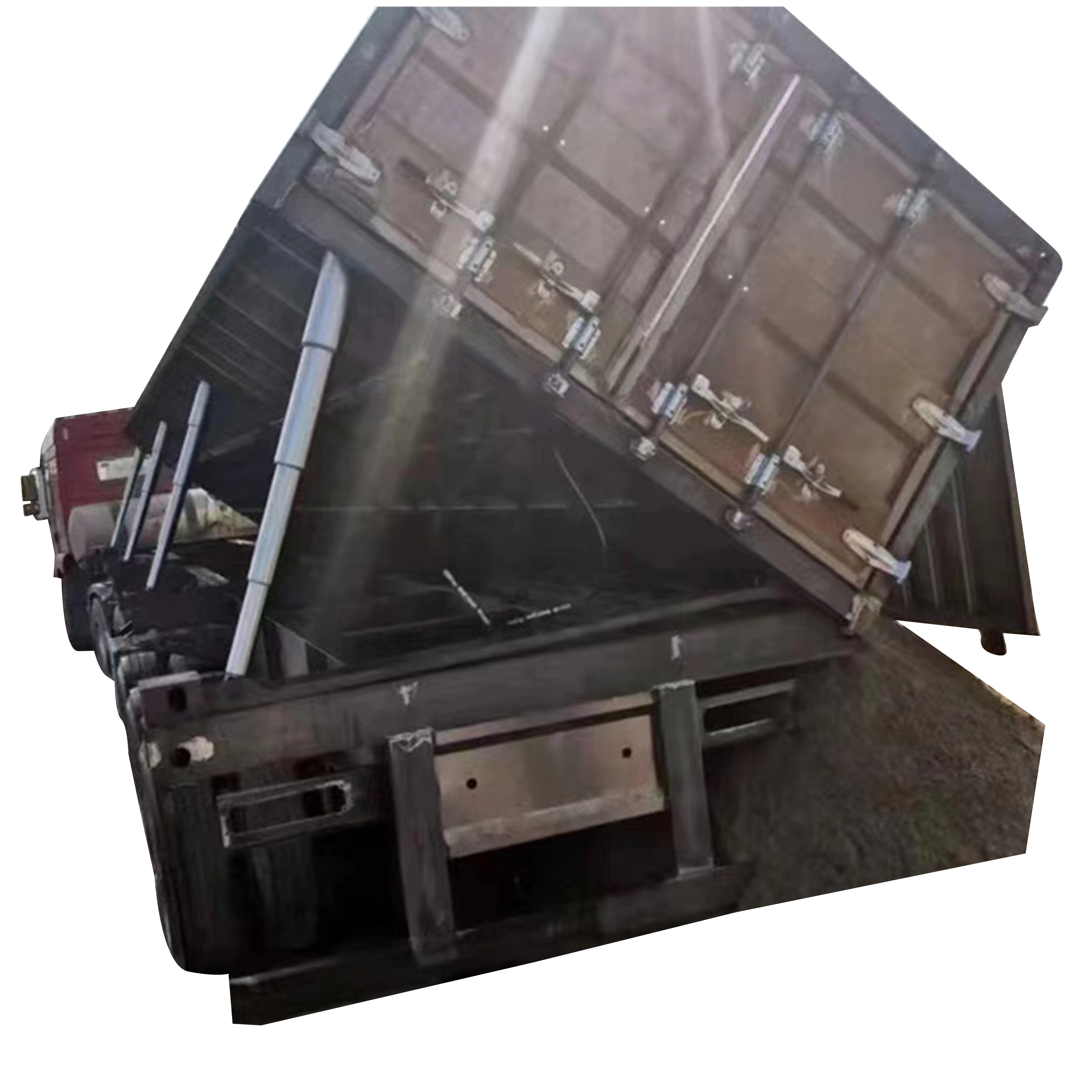

It features a strong, lightweight skeletal frame. Its core function is the hydraulic side-tipping mechanism, which lifts and tilts the entire trailer to rapidly unload loose materials like rocks, sand, or scrap metal to the side.

This design offers superior stability compared to rear-dump models and allows for precise material placement, making it ideal for construction sites, mining operations, and roadwork projects where speed and controlled discharge are critical.

Key Product Features

High-Performance Hydraulic Dumping System

Built for off-road or rugged terrain, it is typically paired with a high-horsepower off-highway tractor. The integrated hydraulic system raises the entire body via massive cylinders mounted at the front, allowing for rapid, controlled rear-dump unloading directly onto stockpiles or into crushers. This combination eliminates the need for on-site loading equipment at the discharge point, significantly accelerating cycle times.

Robust Structural Design

• Body Material: Hardox 400 steel (hardness rating ≥400 HB) resists abrasion from sharp materials like stone or coal, extending the body's service life by 50% compared to standard carbon steel.

• Frame & Beams: High-quality manganese plates form a rigid frame that withstands heavy loads and sudden impacts during offloading.

• High-strength, Open-frame chassis: The chassis itself is engineered from high-tensile steel, offering an optimal strength-to-weight ratio. This reduces tare weight for greater payload capacity and fuel efficiency while maintaining the robustness needed for heavy, abrasive loads.

Multi-Functional Flexibility and Versatility in Application

The side-dump action provides superior stability, significantly lowering the risk of rollover compared to rear-tip models. This allows for safe unloading on uneven terrain or soft ground common at construction and mining sites. Furthermore, the trailer can discharge its load precisely to the side, facilitating tasks like forming windrows, filling trenches, or spreading material along a roadway without the need for additional machinery, maximizing fleet utilization and reducing downtime.

Scenario-Based Solutions

Mining & Quarry Operations

Mining and Quarrying sector heavily relies on these trailers to transport heavy, abrasive materials such as coal, ores, crushed rock, and overburden. Their robust skeletal frame withstands immense payloads, while the quick-dump mechanism minimizes cycle time at processing plants, stockpiles, and reclamation sites..

Construction Site Material Handling

Skeleton Side Dump Semi-Trailer excels in site preparation for delivering and spreading aggregates like gravel and sand for roadbeds, foundations, and backfilling trenches. The ability to unload in controlled windrows accelerates the work of paving and grading crews.

Agriculture and Forestry Transport

They are valuable in Agriculture and Forestry for transporting bulk feed, grain (with appropriate containers), and wood chips. In Landscaping and Large-Scale Earthworks, they are ideal for moving and placing soil, topsoil, and fill material with precision, particularly on sloped or uneven terrain where rear-dump trucks pose stability risks.

Further more, Demolition and Waste Management represents another critical application. These trailers efficiently haul and unload demolition debris, concrete rubble, and scrap metal. The side-dump action allows for neat stacking at disposal sites or direct feeding into crushers and sorting facilities.

Technical Support & Customized Services

• Hydraulic System Expertise: Our engineers provide training on hydraulic maintenance (fluid checks, cylinder inspections) and troubleshooting for common issues (e.g., slow tipping).

• Customization: Core customizable elements include the trailer length, payload capacity, and the type of side walls (e.g., solid for fines, slatted for drainage, or high for increased volume). The hydraulic system's power and tipping angle can be configured for different material densities and dumping precision.

• Warranty & Parts: 1-year warranty on hydraulic components and steel chassis. Furthermore, detailed online parts catalogs, technical bulletins, and priority access to engineering support for complex repairs.

Skeleton Side Dump Semi Trailer offers distinct structural advantages that make it a superior choice for demanding bulk haulage.
