| Quantity: | |
|---|---|

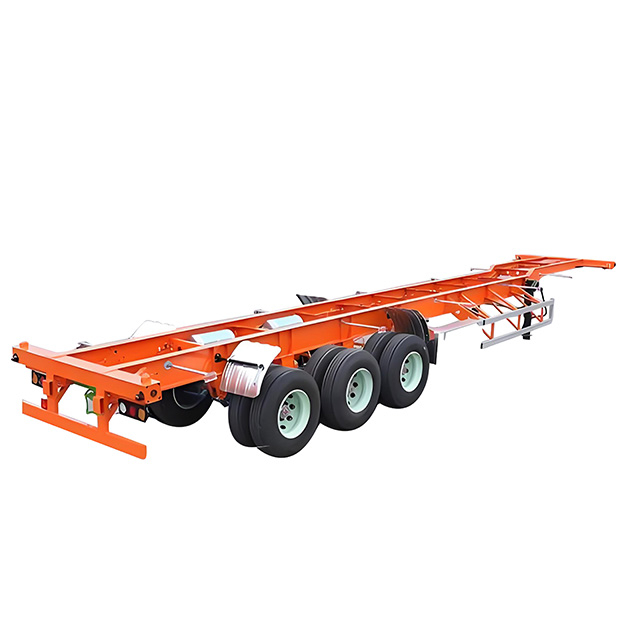

The Container Skeletal Semi-Trailer is a specialized heavy-duty transport vehicle engineered to streamline the movement of shipping containers across diverse terrains and operational scenarios. Designed with a focus on durability, versatility, and efficiency, this trailer serves as a critical link in logistics chains, seamlessly connecting ports, warehouses, distribution centers, and industrial facilities.
Loading Capacity | 30-60 tons, a 45ft container |
Axle | 3/4 pcs Fuwa/BPW/Saf |
Tire | 12/16 units |
Material | Main beams Q345B, Upper flange:14mm, Middle:8mm, Down:16mm |
Container Twist Locker | 4/8/12 pcs or customized |
This trailer consists only of a strong steel frame—two main longitudinal beams connected by cross members—mounting legs, and axles. This "skeleton" design minimizes its tare weight, maximizing legal payload capacity. Its key operational components are the twist locks at the four corners, which securely fasten onto the container's bottom corner castings, creating a rigid, integral unit for safe transit. The distinctive deep gooseneck (the lowered front section) is a crucial design feature, ensuring that when a tall 45ft high-cube container is mounted, the overall combination complies with strict road height regulations.
The primary advantage of the 45FT model over the standard 40FT version is its increased volumetric capacity. It is designed for the 45FT container, which offers approximately 12% more cubic space than a 40FT counterpart. This makes it the equipment of choice for transporting voluminous, lightweight cargo, enhancing cost-effectiveness per trip. While it can also accommodate 40FT and 20FT containers by adjusting its twist locks, it is most efficient when dedicated to its intended longer size.
Advanced models incorporate low-rolling-resistance tires and efficient axle alignment, which decrease friction.
Lightweight and Robust chassis, constructed from high-strength steel or aluminum alloys, minimizes tare weight and increases the payload capacity significantly. This directly reduces the energy consumption per ton-kilometer.
Anti-lock Braking Systems (ABS) and Electronic Braking Systems (EBS) enhance braking stability and control, especially under heavy loads or slippery conditions. Tire Pressure Monitoring Systems (TPMS) provide real-time alerts for under-inflation, a critical factor in preventing blowouts.
Its core mechanical safety relies on robust ISO-standard twist locks, preventing dangerous shifts or detachment during transit. Additionally, integrated sensor-based twist lock monitors can verify if all locks are properly engaged before departure, eliminating human error.
These trailers are engineered for durability and high-cycle operations. Their application is central to port logistics, cross-border transportation, and servicing rail-container drayage. By integrating seamlessly with rail and sea transport, this trailer enables a cost-effective and reliable door-to-door solution for heavy industry, minimizing the need for cargo handling and reducing the risk of damage during transit.
The 45FT Container Skeleton Semi Trailer is a specialized and critical piece of equipment in modern intermodal freight transport, particularly dominant in markets like China and intra-Asian trade routes. Designed as a lightweight, robust chassis, its sole purpose is to efficiently carry standardized ISO shipping containers over the road, forming the vital link between seaports, rail terminals, and final destinations.
Its key function is as a high-capacity "urban shuttle". It delivers full 45-foot containers to depots located outside dense urban cores, where cargo is then deconsolidated for final delivery by smaller, more agile vehicles. This system maximizes efficiency for the long-haul segment, reducing the number of total vehicle trips into the city.
The 45-foot skeleton semi-trailer is engineered as a robust workhorse for transporting heavy industrial cargo within the intermodal supply chain. Its reinforced high-strength steel frame and multi-axle configuration (typically tri-axle) are designed to bear concentrated and distributed loads from heavyweight containers. This makes it an ideal platform for moving dense commodities, heavy machinery components, and industrial materials efficiently over the road.
The operational excellence and longevity of the 45-foot skeleton semi-trailer are underpinned by a comprehensive ecosystem of technical support:
• Customization: Engineering support extends to customization for specific duties, such as reinforcing the main beams for heavier payloads or optimizing the gooseneck geometry for particular container types, ensuring the trailer's inherent design supports its intended application reliably.
• Compliance Guidance: Reputable manufacturers provide detailed technical specifications, structural analysis reports, and compliance documentation for regulations like China's GB standards or international ISO norms.
• Performance Testing: Each unit undergoes rigorous load testing, vibration analysis, and corrosion resistance checks before delivery, backed by a 5-year structural warranty.
We go beyond manufacturing to support your operations:
• Pre-Sale Consultation: Focuses on consultative specification to analyze cargo profiles, route regulations (e.g., weight and length limits), and fleet compatibility.
• During-Sale Support: Clients receive regular updates on the production schedule, including material procurement and assembly milestones.
• After-Sale Support: Global network of service centers providing maintenance, repairs, and genuine spare parts.
• Logistics Assistance: Partner with trusted freight forwarders to arrange cost-effective shipping and customs clearance for international orders.
The 45FT Container Skeleton Semi Trailer is a masterpiece of focused engineering, optimizing the land-leg of container logistics for greater volume, weight efficiency, and seamless integration within the intermodal chain in specific regulatory environments..
