Loading Capacity | 60-80 tons or customized |
Material | Q345 carbon steel |
Axle | 3/4/5/6 pcs |
Tire | 12/16/20/24 units |
Suspension | Heavy Duty Mechanic Suspension with Leaf Springs |
Brake System | Dual Lines Braking System With Automatic Air Chambers |

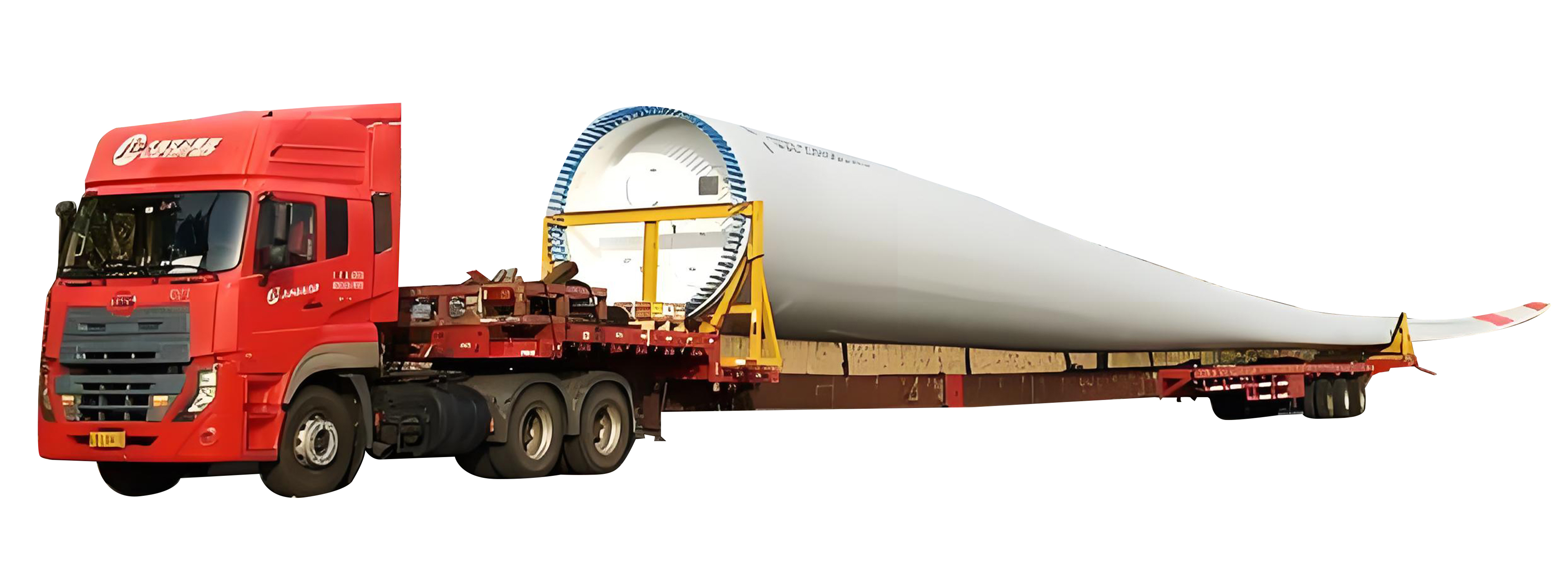

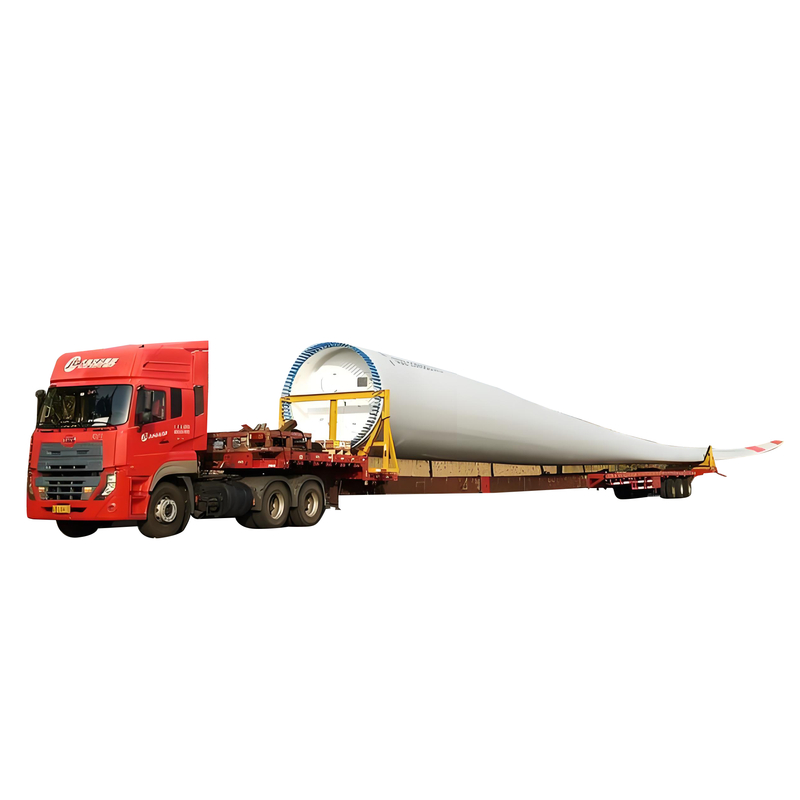

The Windmill Blade Transport Semi Trailers feature extendable decks with telescopic beams that adjust to accommodate varying blade lengths.
Advanced hydraulic steering systems provide exceptional maneuverability on narrow rural roads and challenging terrain common in wind farm locations.
Many models incorporate hydraulic suspension with individual axle lifting capabilities, allowing operators to optimize ground clearance and navigate obstacles such as sharp curves, roundabouts, and low bridges.
The trailer features a telescopic beam system that allows the deck length to be extended to accommodate blades ranging from 40 to over 100 meters. This adjustable structure enables the same trailer to handle various blade sizes, maximizing fleet utilization and reducing the need for multiple specialized units..
A hydraulically adjustable gooseneck provides precise control over the blade's angle during transport. By tilting the front support, operators can significantly reduce the overall transport height, allowing safe passage under bridges, tunnels, and overhead power lines. This feature also helps optimize weight distribution across the axles for improved stability.
Equipped with multi-axle configurations—typically 4 to 8 axles—the trailer utilizes independent hydraulic suspension systems. Each axle can be raised or lowered individually, enabling the trailer to adapt to uneven terrain and maintain level loading.
This suspension design also allows for axle lifting during empty runs to reduce tire wear and fuel consumption.
Hydraulic pendulum axles offer exceptional maneuverability with steering angles up to 60 degrees. This capability is critical for navigating tight corners, roundabouts, and winding rural roads commonly encountered during blade transport. Remote-controlled steering provides operators with precise control from outside the vehicle..
Rotating Blade Adapter

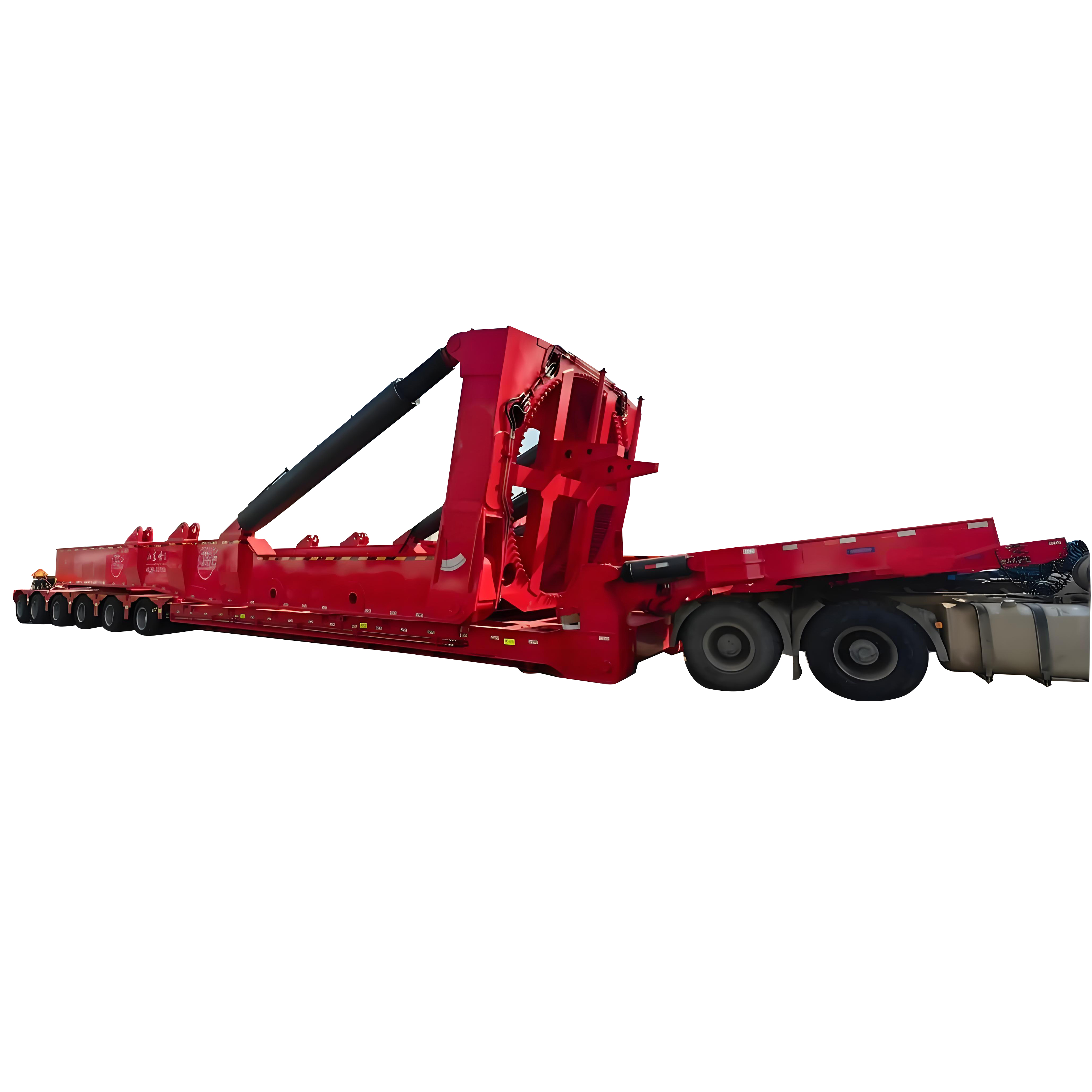

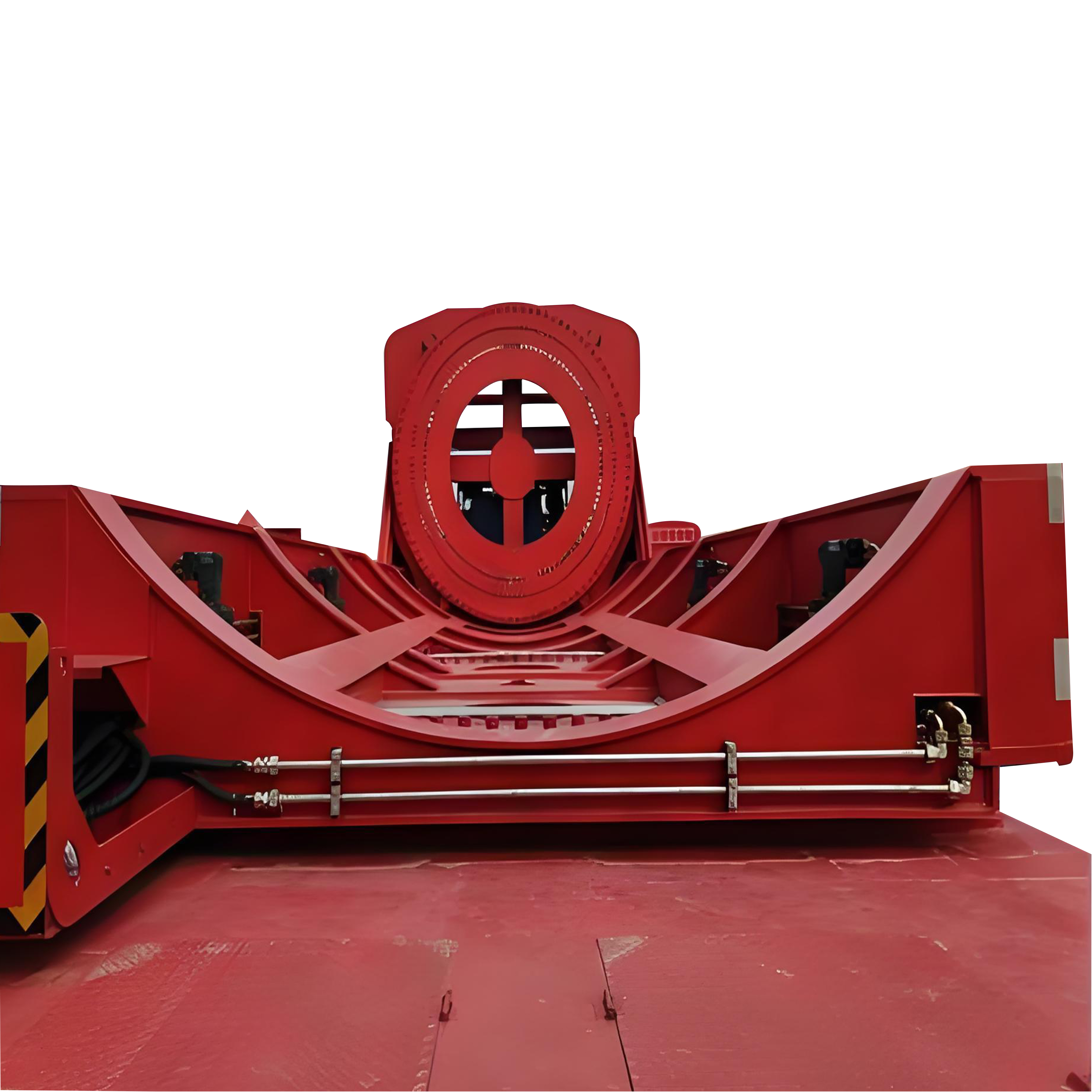

High-end models incorporate a rotating blade adapter at the rear. This mechanism allows the blade to pivot horizontally or vertically during transit, enabling the trailer to maneuver around fixed obstacles without stopping or requiring complex rerouting.
In onshore wind projects, these trailers navigate challenging rural roads, mountain passes, and narrow village routes to deliver blades to often remote locations. The extendable deck and hydraulic steering systems allow operators to maneuver through tight corners, roundabouts, and low-clearance obstacles that would otherwise be impassable for conventional heavy-haul equipment.
For offshore wind farms, these trailers transport blades from production facilities to port staging areas where they are prepared for vessel loading.
As older wind farms undergo repowering—replacing outdated turbines with newer, larger models—these trailers facilitate the removal of existing blades and delivery of replacement components. The flexibility to handle varying blade lengths makes them ideal for phased upgrade projects.
The Wind blade Transport Semi Trailer plays a critical role in the global renewable energy supply chain, enabling the transport of massive turbine blades from manufacturing facilities to wind farm installation sites across diverse terrains and geographic conditions.
Manufacturers and specialized logistics providers offer expert consultation for route planning, including detailed route surveys to identify potential obstacles such as low bridges, sharp curves, and weight-restricted roads.
Engineers assist with transport feasibility studies, clearance verification, and permit acquisition to ensure compliance with regional transportation regulations.
Advanced telematics systems enable real-time monitoring of trailer performance, including axle load distribution, suspension status, and steering alignment. Remote diagnostic support allows technical experts to identify and resolve issues without on-site visits, minimizing downtime during critical transport operations.
With dedicated technical assistance, fleet operators can maximize equipment reliability, reduce transport risks, and maintain the stringent safety standards required for wind energy logistics..
Manufacturers provide extensive warranty coverage for structural components, hydraulic systems, steering mechanisms, and suspension assemblies.
Further more, Detailed technical manuals, video tutorials, and remote troubleshooting support enable fleets to maintain peak operational readiness.
Introduction: Engineered for safe, efficient transport of oversized turbine blades.
The wind blade semi-trailer is a highly specialized transport solution engineered to meet the unique challenges of moving oversized wind turbine blades. Its design focuses on flexibility, stability, and safety throughout the logistics chain.
With robust construction from high-strength steel and multi-axle configurations providing superior stability, Wind Blade Semi Trailers play a vital role in the global transition to renewable energy.
