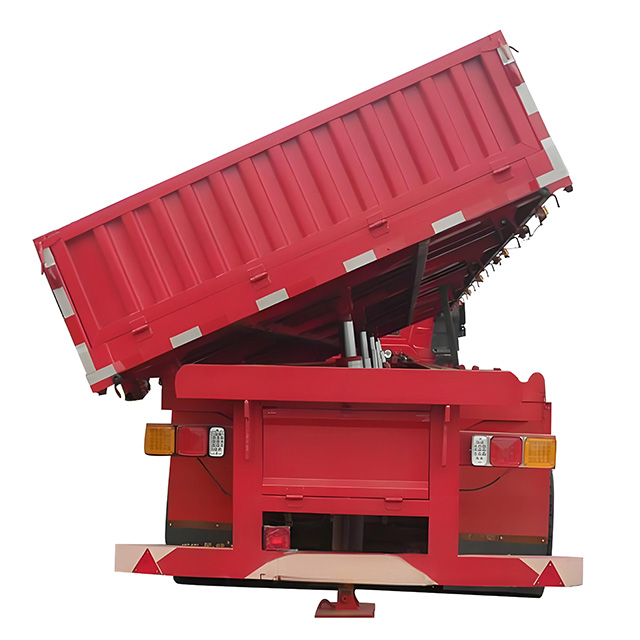

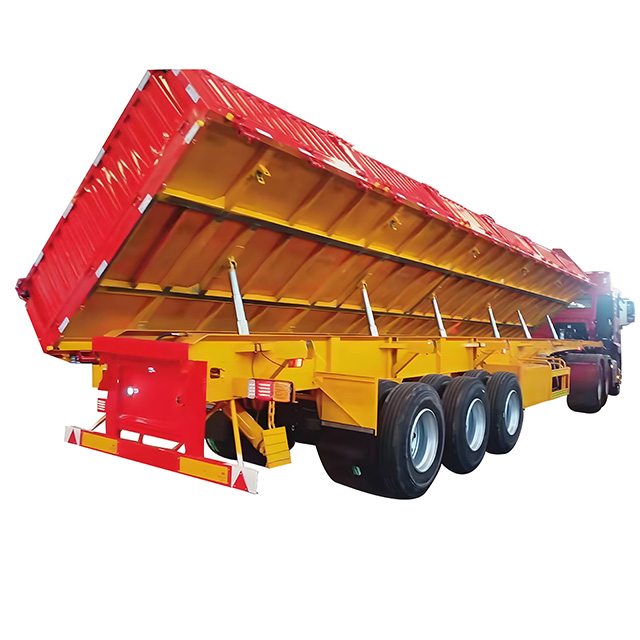

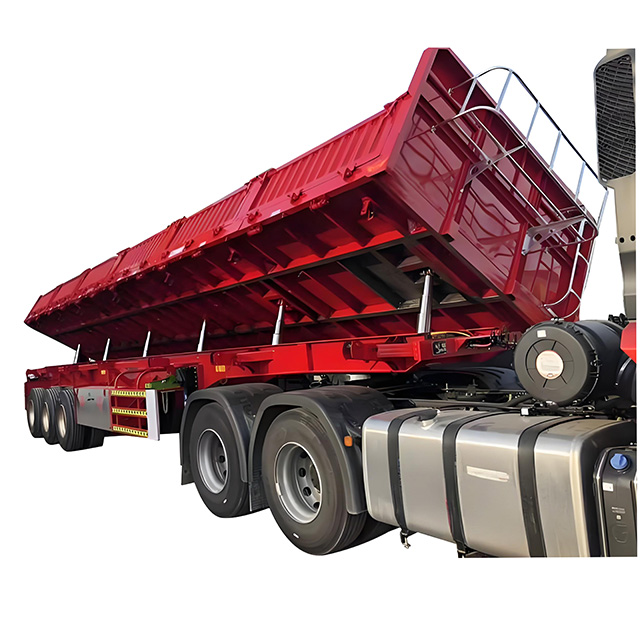

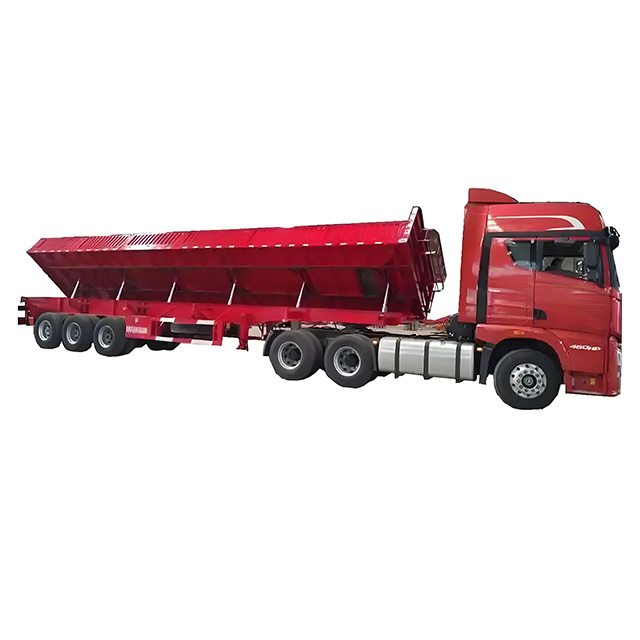

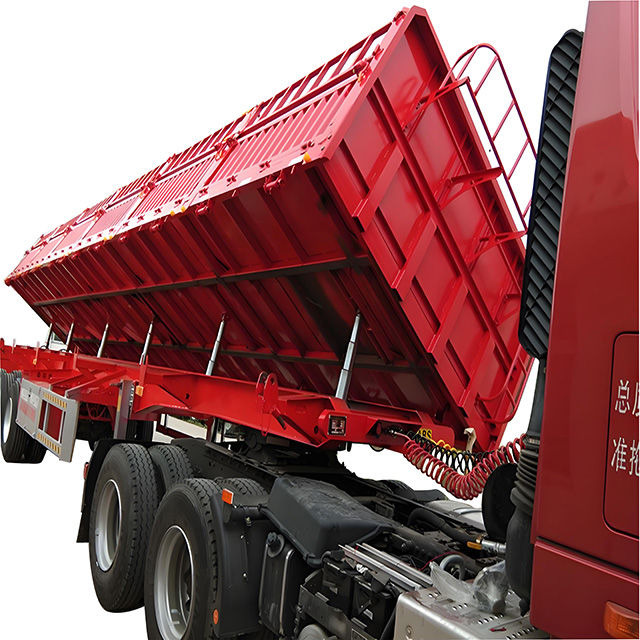

Heavy Duty 30-100Tons Side Dump Tipper Semi Trailer

Product Introduction

Unlike traditional rear-dump trailers, its side-tilting design eliminates the need for maneuvering into tight spaces, making it ideal for mining, construction, and agricultural operations. Key highlights include a hydraulic tipping system (45°–60° adjustable angle), Hardox 400 steel body (wear-resistant and impact-proof), and compatibility with 20FT/40FT containers via 12 built-in container locks. With a loading capacity of 30–80 tons (customizable), this trailer balances power and versatility to handle high-volume, heavy-duty tasks.

Key Product Features

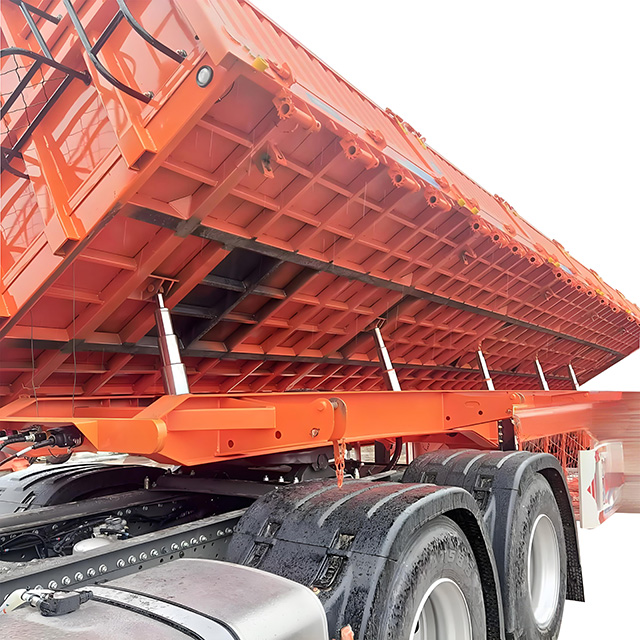

High-Performance Hydraulic Dumping System

Equipped with a 130# 6+1 lifting system and optional HYVA hydraulic cylinders, the trailer ensures stable, controlled tipping without rollover risks—even when carrying unevenly distributed cargo (e.g., wet sand). The hydraulic components are sealed against dust and moisture, reducing maintenance needs in harsh environments (e.g., quarries, muddy construction sites). The 45°–60° adjustable dump angle allows precise material placement, such as pouring gravel directly into road construction trenches.

Robust Structural Design

• Body Material: Hardox 400 steel (hardness rating ≥400 HB) resists abrasion from sharp materials like stone or coal, extending the body’s service life by 50% compared to standard carbon steel.

• Frame & Beams: High-quality manganese plates (welded via robotic precision) form a rigid frame that withstands heavy loads and sudden impacts during offloading.

• Dual-Purpose Cargo Box: Available in dustpan (for fine materials like grain) or rectangular (for bulky debris) designs, ensuring optimal containment for different cargo types.

Multi-Functional Compatibility

12 integrated container locks enable the trailer to switch between bulk material transport and container hauling—no additional equipment required. This flexibility is a cost-saving advantage for fleets that need to handle both loose cargo (e.g., construction sand) and packaged goods (e.g., palletized building materials) in a single trip.

Scenario-Based Solutions

Mining & Quarry Operations

Mines and quarries require frequent transport of ore, limestone, and gravel. The Side Dump Semi Trailer’s Hardox 400 body resists wear from sharp rocks, while the side-tilting design allows offloading directly into crushers or stockpiles—eliminating the need for secondary handling equipment. The 80-ton max capacity reduces the number of trips, cutting fuel costs and boosting productivity.

Construction Site Material Handling

For road or building construction, the trailer hauls sand, concrete aggregates, and demolition debris. Its ability to tilt sideways means it can unload materials along narrow road edges or next to building foundations—spaces where rear-dump trailers cannot operate. The hydraulic system’s stability also prevents spillage, keeping job sites safe and compliant with environmental regulations.

Agricultural Bulk Grain Transport

During harvest seasons, farms and grain elevators use the trailer to transport wheat, corn, or soybeans. The dustpan-style cargo box prevents grain from leaking, while the gentle tipping angle avoids damaging the crop. The container lock feature also allows the trailer to haul 40FT grain containers for long-distance transport to ports or processing facilities.

Technical Support & Customized Services

• Hydraulic System Expertise: Our engineers provide training on hydraulic maintenance (fluid checks, cylinder inspections) and troubleshooting for common issues (e.g., slow tipping).

• Customization: Adjust loading capacity (up to 100 tons for mining), cargo box type (dustpan/rectangular), and hydraulic cylinder brand (HYVA or client-specified) to match operational needs.

• Warranty & Parts: 1-year warranty on hydraulic components and Hardox steel body, plus global supply of replacement parts (tires, cylinders, locks) for fast repairs.
